Latest Leaked Images Reveal a Rugged New Hyundai Off Road SUV Ready to Take on the Ford Bronco

Overwhelming consumer fatigue surrounding soft-road crossovers has finally reached a breaking point across modern automotive enthusiast communities. For years, drivers seeking genuine trail capability have watched major manufacturers continuously release unibody crossovers styled with plastic cladding, aggressive roof racks, and decorative skid plates that offer zero real protection in technical terrain.

While these suburban commuters excel at grocery runs and smooth highway cruising, they fail completely when confronted with steep incline rock crawls, deep mud ruts, and punishing washboard gravel roads. The automotive market has effectively forced adventure enthusiasts into choosing between expensive traditional leaders or compromising on daily highway driveability.

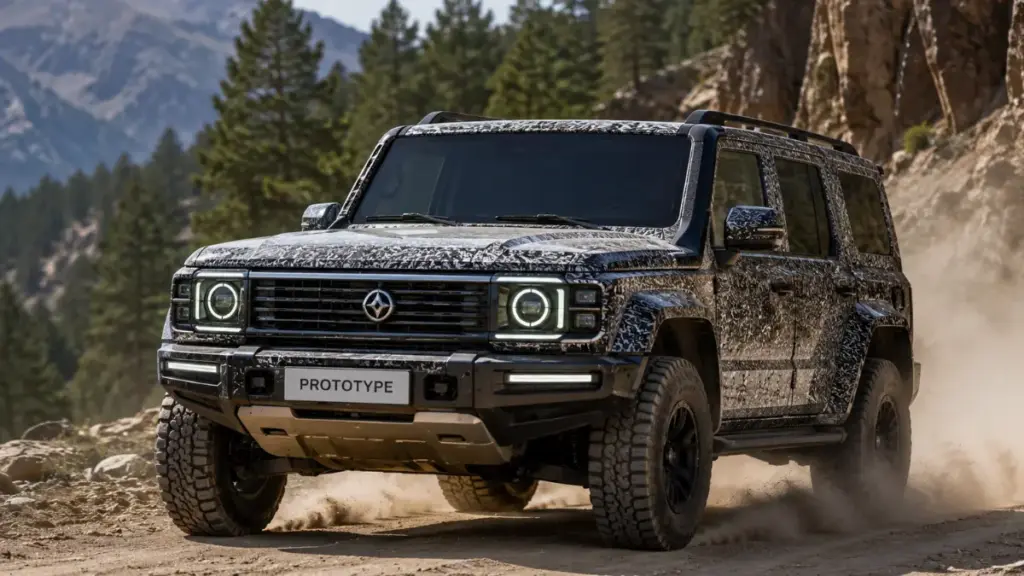

However, newly leaked engineering patent filings and high-altitude spy photographs indicate that Hyundai is preparing to shake up the entire four-wheel-drive market segment. By developing a dedicated Off Road SUV built upon an authentic heavy-duty chassis, the Korean automaker is aiming directly at established heavyweights like the Ford Bronco and Toyota 4Runner.

This long-awaited vehicle promises to bridge the gap between uncompromising trail mechanical durability and modern interior refinement. In this exhaustive technical analysis, we dissect the patent blueprints, suspension geometry, powertrain specs, and real-world utility that define this upcoming platform.

The Structural Shift to a Dedicated 4×4 Ladder Frame Architecture

For over a decade, trail enthusiasts across online vehicle forums have argued that modern unibody crossovers lack the structural integrity required for severe backcountry travel. When navigating extreme axle articulation or dropping off sharp granite ledges, unibody structures experience significant torsional flex that can bind door latches, crack windshields, and prematurely wear suspension mounting points.

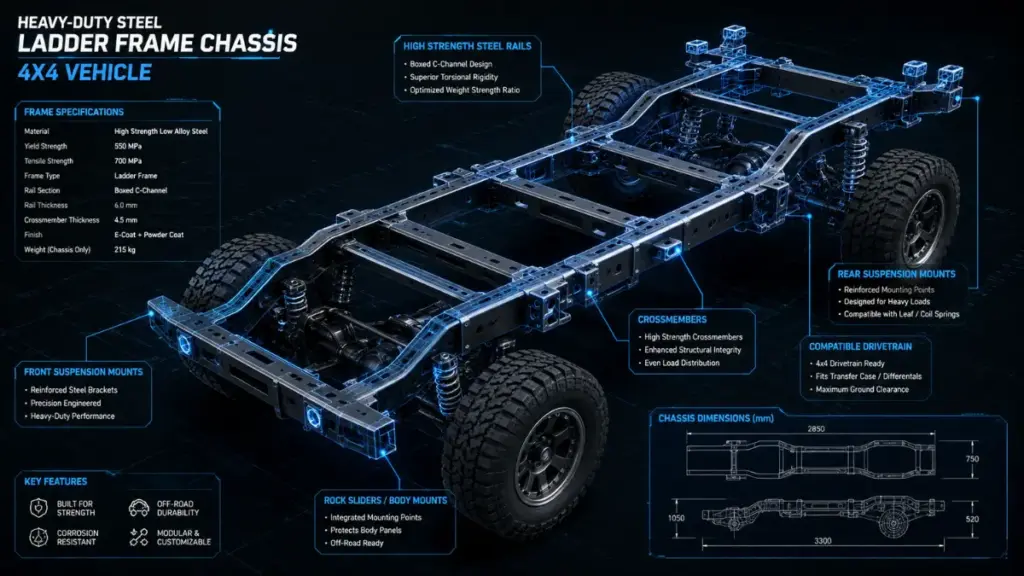

To eliminate these inherent structural limitations, leaked blueprint schematics reveal that Hyundai’s upcoming Off Road SUV completely abandons unibody passenger car architectures in favor of a traditional full-length steel frame. By mounting the passenger body onto a rigid box-section frame rail setup, the vehicle gains immense resistance against twisting forces encountered on severe rock crawls and deep rut trails.

Furthermore, this dedicated chassis foundation allows engineers to isolate cabin noise and vibration from harsh trail feedback through heavy-duty rubber body mounts. Drivers operating this Off Road SUV will experience superior structural durability over thousands of severe trail miles without compromising passenger cabin integrity or long-term frame alignment.

The decision to build an authentic 4×4 ladder frame architecture directly addresses long-standing complaints regarding modern utility vehicles that prioritize fuel economy ratings over real-world toughness. Consequently, this mechanical foundation establishes the upcoming vehicle as a legitimate, heavy-duty utility rig rather than a glorified urban commuter.

“A true off-roader lives and dies by its structural frame. Unibody setups offer highway comfort, but authentic ladder-frame engineering provides the longevity that trail veterans demand.”

Jade

Analyzing the frame dimensions indicates substantial steel wall thickness along high-stress points surrounding the front and rear suspension mounting perches. This reinforced construction ensures that towing heavy expedition trailers or installing heavy-duty steel bumpers will not compromise structural safety.

Ultimately, adopting this proven structural approach guarantees that the vehicle can endure years of severe off-pavement abuse while maintaining factory mechanical tolerances. Buyers can confidently tackle remote desert tracks knowing their Off Road SUV possesses genuine structural backbone.

Read more: Why the LEGO Technic Aston Martin AMR26 Looks Different From the Real F1 Car: 5 Surprising Truths

Analyzing Off Road SUV Patent Schematics and Suspension Geometry

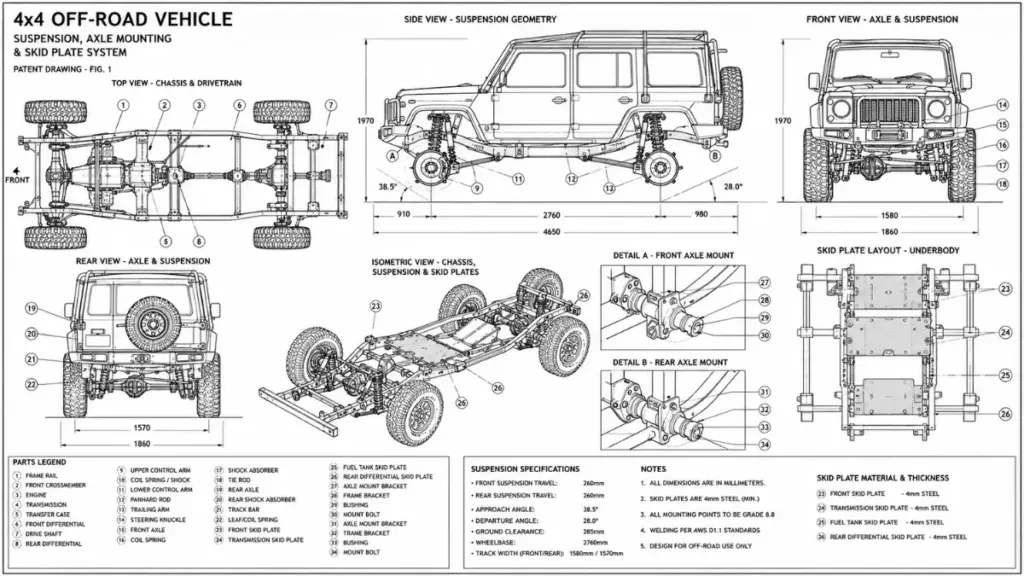

A close inspection of newly published patent documentation offers fascinating insights into how Hyundai engineers solved the challenge of balancing off-pavement wheel travel with stable pavement handling. Standard independent front suspension setups on suburban crossovers typically offer restricted vertical wheel travel, causing tires to lift off the ground when crossing offset moguls or deep ditches.

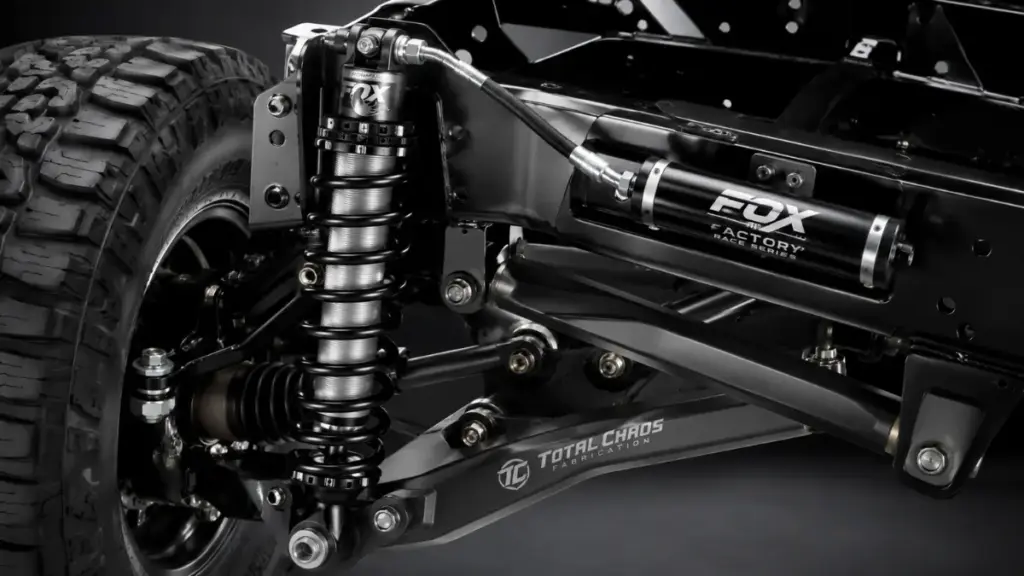

Patent diagrams confirm that this new Off Road SUV utilizes high-clearance upper and lower control arms paired with extended-travel coilover shock assemblies. This specialized geometric configuration maximizes ground contact for all four tires during technical trail maneuvers, providing continuous traction on uneven rock surfaces.

In addition to elongated suspension arms, the patent drawings highlight heavy-duty mounting gussets positioned at critical chassis stress locations. These reinforced mounting points prevent bracket deformation during high-speed washboard desert runs or unexpected impacts against hidden boulder obstacles.

By engineering high vertical wheel travel into the front suspension layout, the vehicle maintains steering control even when navigating complex rock gardens. Drivers no longer have to rely solely on momentum to carry momentum over technical trail obstacles.

Furthermore, the rear chassis layout depicted in the patent filings features a robust live axle held in place by a heavy-duty five-link coil spring system. This solid rear axle design guarantees maximum suspension articulation while delivering high payload capacity for overland camping gear.

Combining an independent front suspension with a solid rear axle creates an ideal mechanical balance for a versatile Off Road SUV. Owners enjoy crisp, linear steering response on highway pavement along with unyielding rear axle toughness when climbing steep mountain trails.

Evaluating Approach and Departure Angles for Extreme Incline Navigation

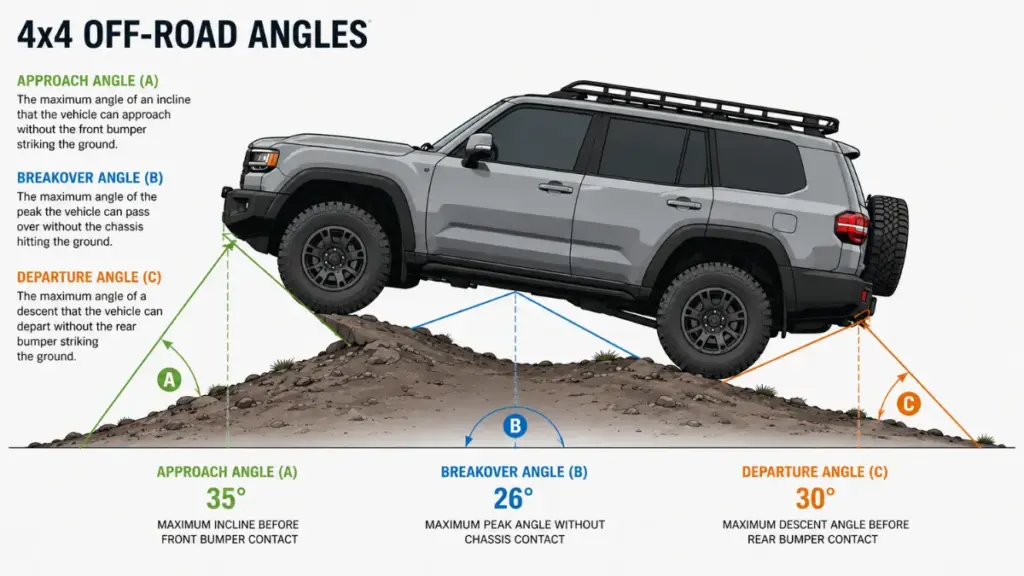

Off-road capability is fundamentally governed by vehicle body geometry and ground clearance measurements. A vehicle with exceptional horsepower and advanced traction control systems will still get completely stranded if long overhang bumpers slam into steep rocks or scrape heavily against ditch embankments.

One of the primary frustrations voiced by trail enthusiasts regarding modern utility vehicles is low-hanging front valances designed strictly for aerodynamic efficiency. Recognizing this critical issue, Hyundai designed the body dimensions of this Off Road SUV to maximize clearance at every angle.

The leaked blueprint measurements indicate aggressive bumper tucks that push the front wheels as close to the leading edge of the vehicle as physically possible. This design produces an estimated approach angle of 38.5 degrees, allowing the front tires to make direct contact with steep rock ledges before any bodywork touches the terrain.

Similarly, the rear bumper design features high-clearance corner cutouts that yield an estimated departure angle of 33.0 degrees. This generous departure clearance ensures that steep rock descents will not rip off rear exhaust tips or damage rear quarter body panels.

Geometry Metric	Hyundai Patent Blueprint Specs	Class Standard Average	Hardcore Trail Benchmark
Approach Angle	38.5 Degrees	30.0 Degrees	43.5 Degrees
Breakover Angle	24.2 Degrees	20.0 Degrees	26.3 Degrees
Departure Angle	33.0 Degrees	26.0 Degrees	37.0 Degrees
Ground Clearance	10.8 Inches	8.5 Inches	11.6 Inches

As illustrated in the comparative analysis table above, the physical dimensions of this Off Road SUV significantly surpass average midsize crossover standards. The generous 10.8-inch standing ground clearance provides ample room to pass over exposed boulders and tree stumps without scraping the chassis.

Moreover, optimized approach and departure angles alongside a breakover angle of 24.2 degrees ensure that crossing sharp mountain ridges will not cause the undercarriage to become high-centered. These impressive geometric specifications establish the platform as a serious contender for technical wilderness exploration.

Master Locking Differentials Performance on Technical Off Road SUV Terrain

When driving through deep mud, loose gravel, or slick wet rocks, standard open differentials route engine torque to whichever wheel experiences the least resistance. On steep trail climbs where one wheel loses contact with the ground, an open differential spins that airborne wheel helplessly while delivering zero power to the grounded tire with grip.

Electronic brake-based traction control systems attempt to solve this issue by applying hydraulic brake pressure to the slipping wheel. However, during extended off-road driving sessions, brake-based systems generate excessive heat, wear down brake pads rapidly, and often cut engine throttle right when drivers need continuous momentum.

To overcome these severe electronic limitations, the leaked patents confirm that Hyundai equips this Off Road SUV with true mechanical locking differentials on both front and rear axles. Engaging these physical lockers forces opposing axle shafts to turn at identical speeds, ensuring 50/50 power distribution regardless of wheel traction.

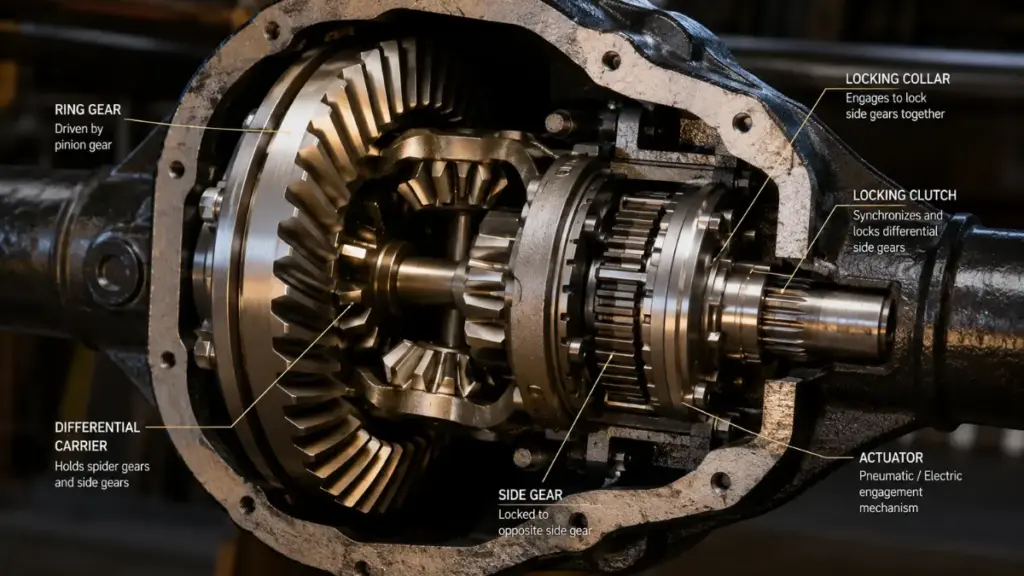

Understanding locking differentials performance helps drivers appreciate why true mechanical locks are essential for low-speed rock crawling. When climbing greasy mud bank inclines in your Off Road SUV, turning on both front and rear lockers guarantees that every available ounce of engine torque translates directly into forward motion.

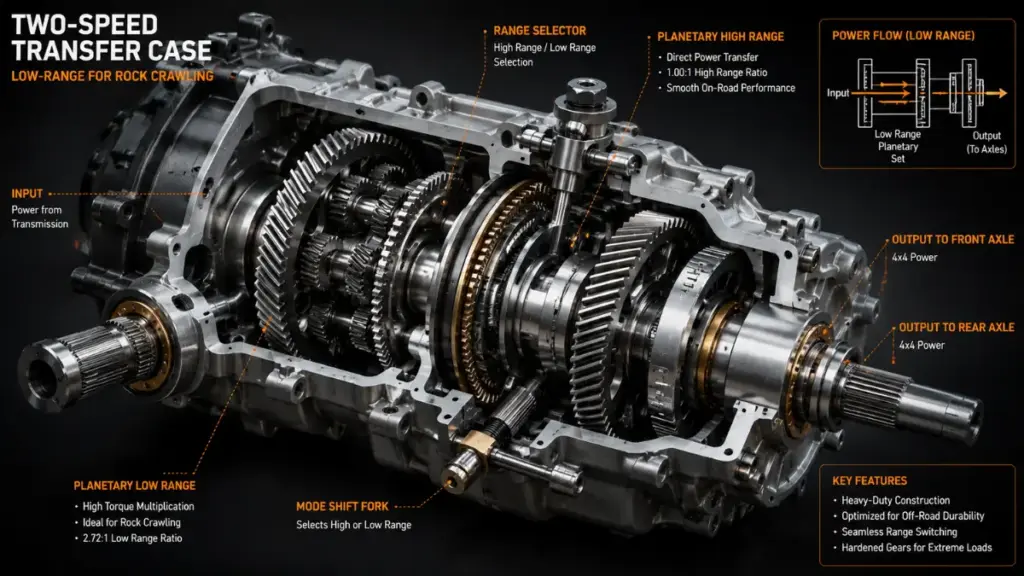

In addition to dual mechanical lockers, the transfer case features a mechanical low-range gear reduction set. Engaging 4-Low multiplies engine torque by more than two-and-a-half times, allowing precise, slow-speed crawling over massive obstacles without overheating the transmission fluid.

Read more: Best Wireless CarPlay Adapters So Far in 2026: The Brutal Truths About Apple CarPlay

This combination of mechanical gear reduction and true axle lockers provides drivers with total control in dangerous backcountry situations. Whether traversing deep snow drifts or descending loose shale slopes, this Off Road SUV delivers uncompromising mechanical traction.

Mastering Terrain Response Mechanics Across Diverse Off Road SUV Environments

While mechanical locking differentials provide raw crawling capability, modern trail driving frequently requires adaptive electronic software management for rapidly changing surface conditions. Driving across deep powdery sand dunes requires completely different throttle calibration and wheel-spin thresholds than navigating slick clay mud or icy winter highways.

The leaked documentation reveals an advanced control system designed to calibrate engine response, gear shift points, traction control thresholds, and steering weight in real time. This sophisticated system allows the Off Road SUV to optimize traction across five distinct driving modes: Sand, Mud, Rock, Snow, and Baja.

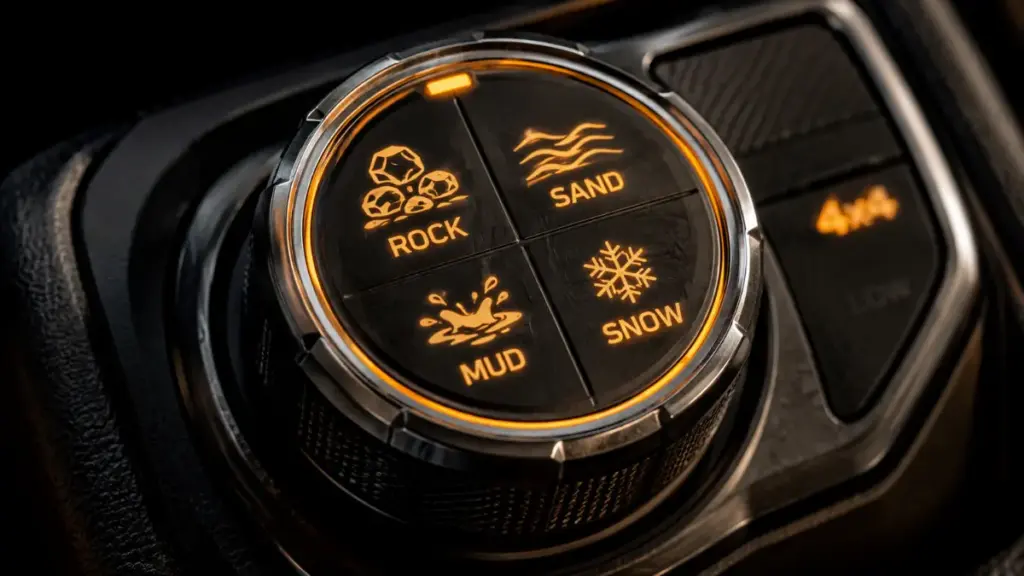

In Sand Mode, the system softens throttle sensitivity to prevent tires from digging immediate holes in soft dunes while holding engine gears higher to maintain forward momentum. Conversely, in Rock Mode, the system sharpens low-end throttle response and engages hill-descent control for microscopic throttle management over jagged granite.

Integrating smart software with heavy-duty mechanical hardware creates a highly accessible driving experience for both novice drivers and veteran trail guides. Drivers operating an Off Road SUV can quickly adjust vehicle settings to match changing trail environments with the turn of a console dial.

Furthermore, studying terrain response mechanics reveals how modern electronics can protect driveline components from shock loads. When a spinning tire suddenly catches high-grip rock, the software briefly modulates engine output to prevent broken axle shafts or stripped ring gears.

This harmonious balance between electronic intelligence and heavy mechanical engineering ensures maximum durability during extreme adventures. The Off Road SUV protects its own driveline hardware while allowing drivers to push deeper into uncharted backcountry territory.

Suspension Calibration: Balancing Off Road SUV Articulation and Highway Refinement

A classic dilemma facing traditional body-on-frame vehicles is the severe compromise in daily driving refinement. Vehicles equipped with stiff solid front axles often suffer from erratic steering wander, harsh impacts over expansion joints, and significant body roll when taking highway turnoff ramps at speed.

To solve this historical comfort penalty, Hyundai engineers developed a dual-stage dampening suspension system specifically tuned for this Off Road SUV. By incorporating internal bypass shock absorbers, the suspension provides plush, forgiving dampening during normal highway travel while progressively firming up during hard off-road compressions.

During small suspension movements on paved roads, shock fluid flows freely through secondary bypass ports, absorbing small pavement imperfections and providing a smooth ride for passengers. However, when the suspension compresses violently over deep trail ruts or high-speed desert washboards, the bypass ports close to prevent hard bottoming out.

“The ultimate test of a modern 4×4 is not just surviving extreme trails, but delivering a quiet, effortless highway drive on the 500-mile journey back home.”

Jade

Additionally, the front stabilizer bar features an electronic disconnect system similar to top-tier off-road packages. With the press of an interior button, the sway bar decouples, increasing front axle articulation by up to 30 percent over technical obstacles.

Once the Off Road SUV returns to paved roads and exceeds 20 miles per hour, the sway bar automatically reconnects to restore flat, predictable cornering stability. This smart engineering eliminates traditional off-road compromises, making this vehicle an exceptional choice for daily commuting and weekend expeditions alike.

Underbody Protection and Integrated Recovery for Rugged Off-Road Vehicles

Traversing remote mountain passes means encountering unexpected hazards like hidden granite boulders, submerged logs, and sharp riverbed rocks. A single impact against an unprotected oil pan or transfer case housing can crack engine castings, leak vital fluids, and leave travelers stranded dozens of miles away from cellular service.

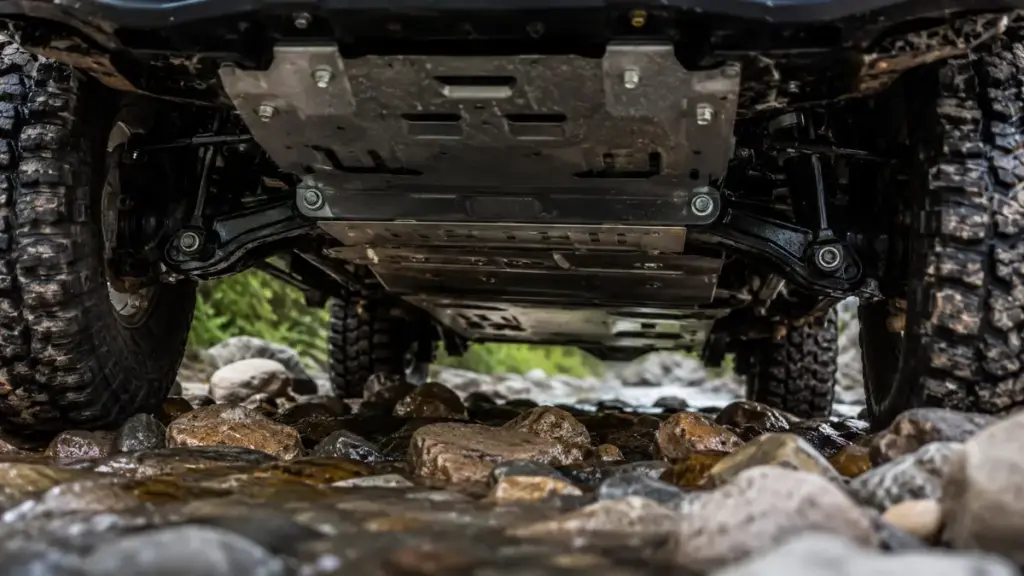

To ensure total underbody security, the patent drawings show a comprehensive network of factory-installed stamped steel skid plates on this Off Road SUV. Heavy-gauge steel armor guards the front steering rack, engine oil sump, transmission casing, transfer case, and fuel tank against direct granite impacts.

Unlike flimsy plastic splash guards found on standard crossovers, these steel plates mount directly to the heavy-duty ladder frame. Impact energy is safely distributed across the rigid frame rails rather than transferring force into fragile mechanical engine components.

Beyond underbody armor, factory recovery points are welded directly to the front and rear box-section frame rails. These dual-rated recovery loops provide safe, reliable anchor points for kinetic snatch ropes and winch extraction operations during deep mud stucks.

Furthermore, the front bumper beam incorporates pre-engineered mounting brackets designed to house an integrated 10,000-pound electric winch behind a removable access cover. This factory winch integration ensures seamless recovery capability for rugged off-road vehicles without requiring heavy aftermarket steel bumper replacements.

By equipping the Off Road SUV with factory-grade armor and recovery hardware, Hyundai demonstrates a deep understanding of practical trail requirements. Adventurers can explore challenging wilderness trails with total confidence in their vehicle’s protection systems.

Off Road SUV Interior Practicality and Integrated Overland Controls

While mechanical durability forms the core foundation of a genuine trail vehicle, cabin ergonomics and interior material durability are equally critical for long-distance expedition comfort. Drivers who spend days traveling through dusty desert trails require an interior that can withstand dirt, water, and hard mud exposure without damaging electrical equipment.

Leaked interior rendering schematics reveal that Hyundai designed the passenger cabin of this Off Road SUV with a heavy focus on rugged utility. Key interior features combine modern digital convenience with rugged, easy-to-clean materials built for harsh environments.

Read more: Level 2 Autonomy: 5 Cognitive Traps That Compromise Human Control In Modern Vehicles

The cabin floor features removable rubberized floor coverings equipped with integrated twist-lock drain plugs beneath the passenger footwells. After an intense weekend in muddy terrain, owners of this Off Road SUV can simply remove the floor mats and hose out dirt and sand directly through the floor drain ports.

• Water-Resistant Marine-Grade Upholstery: Premium synthetic seat materials resist water absorption, UV cracking, and heavy abrasion from dirty trail gear.
• Oversized Physical Control Knobs: Climate control dial and transfer case switches feature tactile rubber grips designed for easy operation while wearing heavy work gloves.
• Factory Auxiliary Overhead Switch Bank: Six pre-wired interior switches permit seamless installation of aftermarket LED spot lights, air compressors, and fridge freezers.

In addition to durable materials, the center console incorporates physical grab handles anchored directly to the steel dash structure. These sturdy passenger handles provide essential upper body support when the Off Road SUV navigates severe off-camber trails and rocky descents.

Furthermore, a high-resolution 12.3-inch infotainment display includes built-in topographic trail mapping software with offline GPS tracking capabilities. Drivers operating their Off Road SUV can record custom GPX trail routes, monitor real-world vehicle pitch and roll angles, and view high-definition trail camera feeds in real time.

Powertrain Engineering for Rugged Off-Road Vehicles: Turbocharged Crawl Ratios

Negotiating steep rock steps or towing heavy expedition trailers requires linear, low-end torque delivery at low engine RPMs. High-revving naturally aspirated engines found in traditional passenger cars lack the immediate bottom-end grunt necessary to climb steep obstacles smoothly without excessive wheel spin.

Leaked powertrain schematics suggest that Hyundai will equip this Off Road SUV with a heavy-duty 3.5-liter twin-turbocharged V6 engine producing an estimated 380 horsepower and 391 pound-feet of torque. Peak torque arrives as low as 1,500 RPM, giving rugged off-road vehicles effortless pulling power over technical trail steps.

This high-torque engine pairs with an upgraded eight-speed automatic transmission featuring recalibrated shift logic for heavy-duty off-road use. The transmission includes a dedicated manual gear hold mode that prevents unwanted gear upshifts when crawling down steep, loose mountain descents.

Calculating the total crawl ratio highlights the vehicle’s impressive mechanical gearing capability. With a first-gear ratio of 4.81:1, a transfer case low-range reduction of 2.72:1, and a rear axle final drive ratio of 4.10:1, the overall crawl ratio reaches an impressive 53.6:1.

This ultra-deep gearing ratio enables microscopic speed control when descending treacherous boulder fields. Drivers can simply engage 4-Low, select first gear, and allow engine compression braking to guide the Off Road SUV down steep inclines without touching the foot brake.

Additionally, an optional hybrid powertrain variant combining a single electric motor with a 2.5-liter turbocharged engine is reportedly undergoing high-altitude testing. The instant torque delivery of the electric motor offers whisper-quiet, zero-emission trail crawling, setting a new benchmark for modern rugged off-road vehicles.

Strategic Positioning of the New Off Road SUV Against Established Competitors

For decades, the midsize body-on-frame adventure segment was dominated almost exclusively by a couple of legacy brands. Consumers wanting a dedicated off-roader were forced to accept premium markup pricing, long waitlists, or outdated vehicle interiors lacking basic modern safety features.

By launching a dedicated Off Road SUV built on an advanced ladder frame architecture, Hyundai is positioning itself to capture a significant portion of this growing market. Offering factory mechanical lockers, high ground clearance, and modern interior technology at a competitive price point creates a compelling alternative for value-conscious adventure seekers.

Furthermore, analyzing enthusiast discussions across major automotive subreddits reveals a strong demand for a reliable, comfortable alternative to harsh daily drivers. Drivers want an Off Road SUV that handles weekly suburban school drop-offs and long highway commutes with ease, yet transforms into a fearless trail rig on weekends.

This upcoming platform directly addresses every major complaint voiced by modern off-road drivers. By eliminating harsh highway vibration, providing washable interior cabin floor surfaces, and offering a robust factory warranty, Hyundai is poised to challenge established segment leaders directly.

The inclusion of modern driver-assistance features like highway lane tracing, 360-degree trail cameras, and adaptive cruise control ensures that daily driving comfort remains top-notch. Owners of this Off Road SUV no longer need to sacrifice family highway safety to enjoy extreme weekend 4×4 capability.

As official automotive show reveals approach, industry analysts predict this platform will disrupt standard pricing models across the entire adventure utility segment. Hyundai’s aggressive engineering strategy proves that a modern Off Road SUV can deliver uncompromising trail strength alongside high-end passenger refinement.

Final Verdict: The Future of Off Road SUV Wilderness Exploration

The leaked patent documentation, detailed suspension schematics, and high-altitude prototype testing images leave no doubt regarding Hyundai’s ambitious engineering goals. This upcoming vehicle is not a cosmetic appearance package or a soft crossover with black wheels; it is a ground-up, heavy-duty Off Road SUV built for severe wilderness exploration.

By combining an authentic box-section ladder frame, dual mechanical locking differentials, high-clearance approach geometry, and an advanced dual-range transfer case, Hyundai has built a mechanical tool capable of conquering the world’s most demanding trails. Simultaneously, the inclusion of smart terrain management software and plush internal bypass dampening guarantees exceptional highway comfort.

For outdoor enthusiasts, overlanders, and daily commuters alike, this groundbreaking platform represents a long-awaited breath of fresh air in an industry dominated by urban soft-roaders. The combination of rugged mechanical hardware, thoughtful interior utility, and competitive pricing ensures that the future of 4×4 adventure in an Off Road SUV is more exciting and accessible than ever before.

As production timelines solidify over the coming months, adventure seekers should keep a close eye on official announcements. The arrival of this authentic Off Road SUV signals a new era where driver freedom, mechanical toughness, and modern comfort unite in a single extraordinary package.
