Global semiconductor fabrication strategies are undergoing a radical recalibration as capital efficiency, energy stability, and immediate yield performance take precedence over distant greenfield promises. The strategic decision by industry leadership to reallocate multi-billion-dollar investmentsโcommitting roughly $5.7 billion toward the expansion of Fab 34 in Leixlip, Ireland while mothballing prospective mega-fab developments in Magdeburg, Germany and ลรณdลบ, Polandโmarks a fundamental shift in how advanced node scaling is executed in European intel chip manufacturing. Rather than absorbing the soaring infrastructure expenses and regulatory delays of building from scratch, modern industrial logic favors double-down investments on proven facilities already integrated with extreme ultraviolet lithography infrastructure to streamline high-volume intel chip manufacturing.
- Strategic Shift in Intel Chip Manufacturing from Germany to Ireland
- The Technical Progression of Intel 3 Process Node Integration
- Bridging European Fabrication Capabilities to the US Market
- Mitigating Operational Risks in Advanced Wafer Fabrication
- The Economics of Custom Foundry Services for Enterprise Clients
- Conclusion and Enterprise Strategic Outlook
This operational realigning directly addresses the soaring global demand for high-performance computing silicon driven by enterprise artificial intelligence workloads, hyperscale data center expansions, and custom server architectures. By accelerating the deployment of the Intel 3 process node at Fab 34, fabrication networks secure an immediate, highly reliable production pipeline that bypasses the multi-year construction ramps required for new sites. Understanding the financial, structural, and technical mechanics behind this geographic consolidation illuminates how modern intel chip manufacturing will shape the global semiconductor supply chain over the coming decade.
Strategic Shift in Intel Chip Manufacturing from Germany to Ireland
The decision to pause construction on the planned $33 billion Magdeburg mega-site in Saxony-Anhalt while pouring substantial capital into the existing Leixlip facility represents a pragmatic pivot from speculative expansion to operational speed. While the proposed German facility captured global headlines due to massive government financial backing, the stark reality of timeline friction and escalating site development overhead made immediate execution impractical. In contrast, Fab 34 in County Kildare represents an active, highly sophisticated node capable of running cutting-edge silicon wafers through extreme ultraviolet scanner lines right now.
Analyzing the Fiscal Realities of EU Chips Act Subsidies
State support structures under the EU Chips Act were designed to catalyze local semiconductor independence, yet the administrative and economic mechanics vary wildly between member states. Germany had pledged approximately โฌ10 billion in direct state subsidies for the Magdeburg project, representing roughly a third of the total projected capital expenditure. However, securing formal clearance from the European Commissionโs competition regulators, navigating strict national budget allocation disputes in Berlin, and absorbing persistent local bureaucratic challenges introduced significant project delays into global intel chip manufacturing timelines.
Furthermore, capital requirements for greenfield mega-fabs inflate rapidly when exposed to ongoing inflation in structural materials, industrial specialized labor, and heavy machinery procurement. Waiting three to four years just to complete civil engineering works and build basic utility hookups in Magdeburg would have exposed corporate balance sheets to unsustainable capital drag. Irelandโs established framework allowed capital allocations to translate instantly into physical tools inside cleanrooms, generating a far higher return on invested capital without waiting on protracted legislative approvals.
Operational Cost Advantages of Ireland Fab 34 Over Magdeburg
Operational cost dynamics extend far beyond initial building grants, directly impacting the final cost per wafer across multi-year fabrication cycles. Ireland offers an established corporate environment, tax stability, and a deeply entrenched regulatory apparatus designed specifically to support high-tech foreign direct investment. Over three decades of continuous operations at the Leixlip site have created a streamlined local administrative apparatus that understands the precise operational requirements of modern intel chip manufacturing.
| Operational Factor | Magdeburg Greenfield Site (Germany) | Fab 34 Leixlip Site (Ireland) |
| Site Readiness | Greenfield requiring total ground buildout | Fully operational with existing EUV cleanrooms |
| Local Talent Pool | Requires multi-year recruitment & training | 30+ years of local specialized engineering talent |
| Supply Chain Setup | High initial vendor setup and logistics cost | Fully mature local supplier and chemical network |
| Grid Infrastructure | High industrial electricity rates & grid builds | Direct high-capacity power ties and green sourcing |
| Time to Market | Estimated 2028-2030 full volume production | Immediate high-volume manufacturing capability |

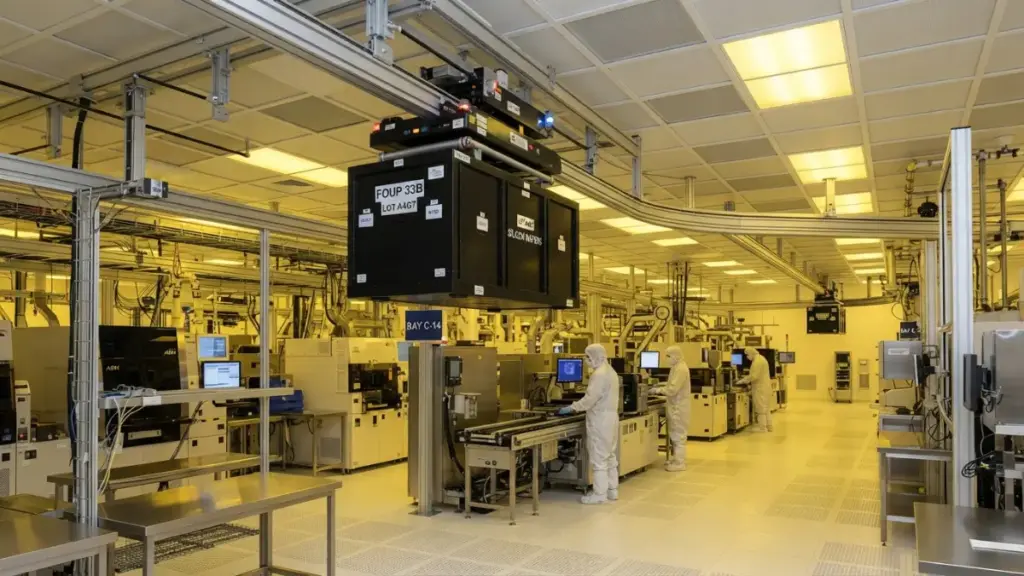

The financial advantages of leveraging existing infrastructure become undeniable when evaluating utility integration, specialized chemical delivery pipelines, and municipal water purification networks. Building these systems from scratch in Magdeburg required hundreds of millions in upfront municipal infrastructure spending before a single cleanroom tool could be calibrated for intel chip manufacturing. Irelandโs pre-existing, hardened infrastructure matrix eliminates these initial capital liabilities, enabling cheaper baseline operational expenditures.
โIn the modern semiconductor industry, time-to-yield is the ultimate metric of cost efficiency; spending years on site civil works while technology cycles advance is a luxury no foundry operator can afford.โ
Luna
By avoiding the civil engineering friction of greenfield developments, manufacturing teams focus entirely on refining process recipes and maximizing wafer throughput. This operational focus yields immediate dividend output, ensuring high-value silicon reaching the enterprise market long before a new site could even finish pouring its concrete foundations for intel chip manufacturing.
The Technical Progression of Intel 3 Process Node Integration

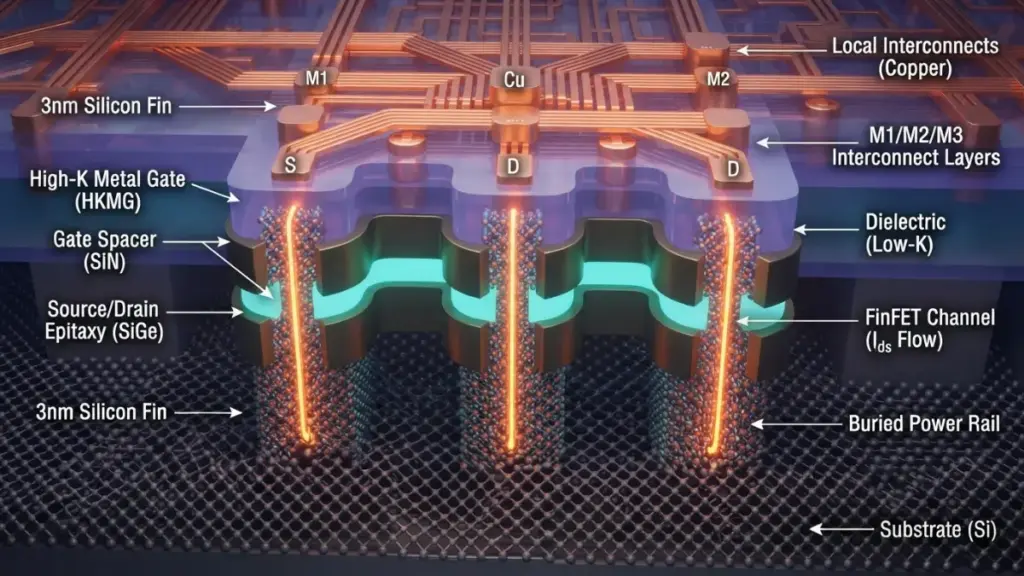

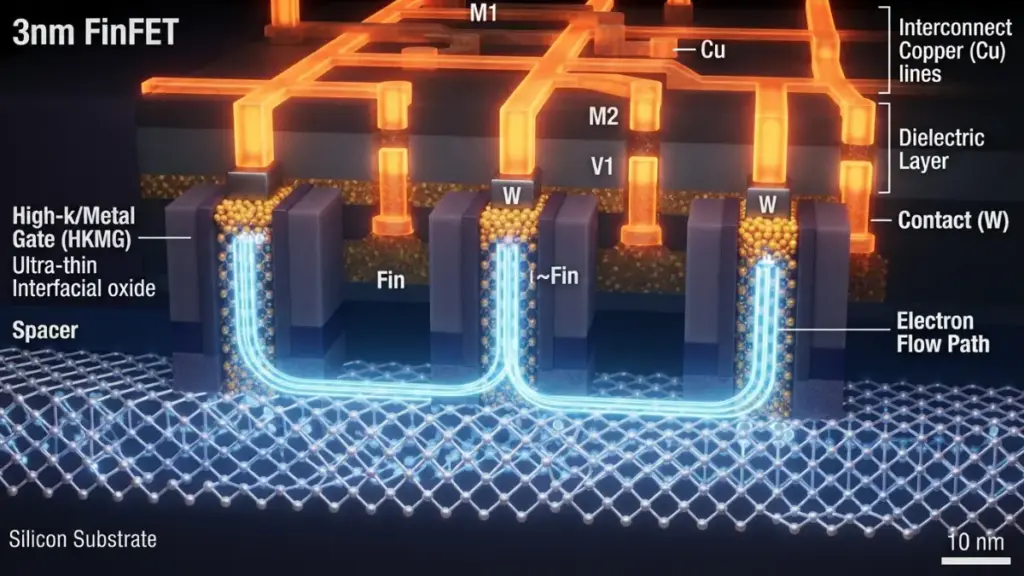

Transitioning from legacy planar transistors to advanced FinFET and gate-all-around architectures requires flawless execution at atomic scales. The deployment of the Intel 3 process node within Fab 34 represents a pivotal technical milestone, delivering significant performance-per-watt enhancements over previous 4nm-class iterations. Achieving these technical metrics requires seamless interaction between extreme ultraviolet lithography systems, complex multi-patterning steps, and precise chemical mechanical planarization across all intel chip manufacturing workflows.
Advanced EUV Lithography Execution for High Volume Production
At the heart of the technical capability in Leixlip are ASMLโs Twinscan NXE EUV scanner systems, operating at a 13.5nm wavelength to print features mere nanometers wide. Integrating EUV light sources into high-volume manufacturing replaces multiple complex immersion DUV exposure masks with single EUV exposure steps, drastically reducing defects and streamlining modern intel chip manufacturing lines.
| Stage | Process Name | Primary Operational Focus |
| 1 | Silicon Wafer Prep | Substrate surface cleaning and thermal oxidation |
| 2 | EUV Lithography Exposure | Photoresist coating and 13.5nm scanner pattern printing |
| 3 | Etch & Ion Implantation | Material removal and atomic doping for channel formation |
| 4 | Metrology & Defect Analysis | High-resolution scanning electron microscope inspection |
| 5 | Final Wafer Sorting | Electrical characterization testing and die grading |
The physical integration of these massive, multi-million-dollar scanner systems requires ultra-stable cleanroom floors capable of dampening microscopic seismic vibrations. Fab 34 was constructed with deep-piling foundation foundations specifically engineered to support EUV tools. Retrofitting existing space and expanding active cleanroom footprints in Ireland allowed engineering teams to bring additional EUV tools online in months rather than spending years designing new structural bays for intel chip manufacturing.
Read more: Will Intel EMIB Semiconductor Packaging Help Google Bypass TSMC CoWoS Constraints?
Scaling HPC Chip Manufacturing for Enterprise Workloads
The primary beneficiary of the Intel 3 process node optimization is the enterprise high-performance computing segment. Modern server platforms, including the Xeon Granite Rapids and Sierra Forest processor families, rely on dense transistor integration to handle massive parallel processing tasks, cloud virtualization, and large language model inference engines powered by precise intel chip manufacturing standards.
Producing large-die enterprise chips demands exceptional wafer defect density control. Because HPC processors feature large physical surface areas, a single microscopic defect can render an entire complex die unusable. Fab 34โs decades of collective operational discipline provide a distinct advantage in defect reduction, rapidly achieving the high wafer yield percentages necessary for cost-effective intel chip manufacturing.
Higher yields directly reduce the unit cost of every functional die that comes off the production line. This economic efficiency allows foundry operations to offer competitive pricing for custom enterprise silicon while maintaining healthy operational margins across all intel chip manufacturing operations.
Bridging European Fabrication Capabilities to the US Market
The global semiconductor supply chain is no longer purely focused on finding the absolute cheapest manufacturing location; it is focused on geographical resilience, legal security, and risk diversification. Executing high-volume intel chip manufacturing in Ireland provides a critical bridge between European technological infrastructure and the massive demand driven by North American corporate technology giants and hyperscale cloud providers.
More Read
Supply Chain Resilience in Global Intel Chip Manufacturing

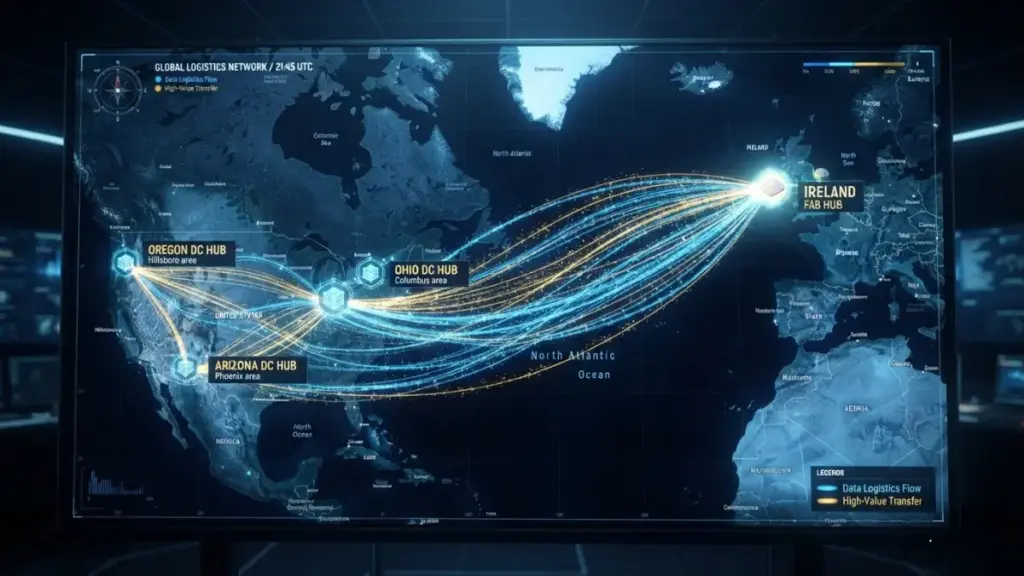

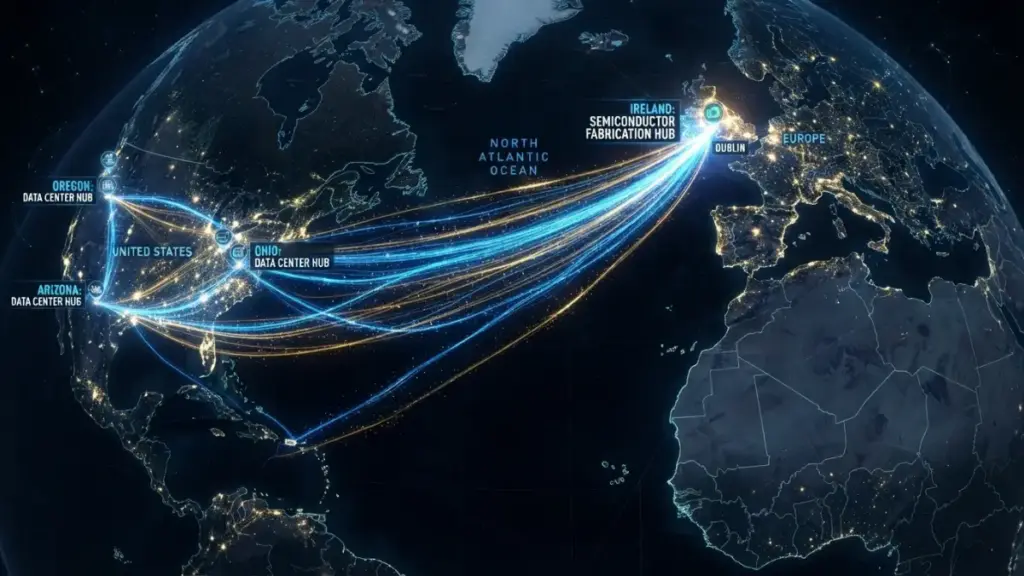

Enterprise clients in the United States are actively seeking to reduce their total reliance on East Asian wafer fabrication centers due to heightened geopolitical tensions and trade vulnerabilities across the Pacific. Having a world-class, Western European fabrication hub operating on advanced EUV nodes offers an immediate, highly secure alternative for mission-critical computing hardware through reliable intel chip manufacturing.
- Geopolitical Risk Mitigation: Diversifies advanced silicon production away from single-region geopolitical flashpoints.
- Regulatory Alignment: Operates under strict European Union and OECD data governance, intellectual property protection, and trade laws.
- Transatlantic Transport Speed: Direct air freight routes from Dublin to major US technology hubs simplify logistics timelines for intel chip manufacturing.
- Unified Manufacturing Standards: Identical process recipes shared across European and North American facilities ensure seamless cross-fab tape-outs.
By aligning process node specifications between Fab 34 in Ireland and sister facilities in Oregon and Arizona, chip designers can tape out a design once and manufacture it interchangeably across multiple continents. This dual-sourcing model provides enterprise buyers with unprecedented supply assurance in global intel chip manufacturing.
Read more: SpaceX Starlink satellite deorbit: The hidden environmental cost of Muskโs space ambition
Advanced Packaging Integration Across International Boundaries

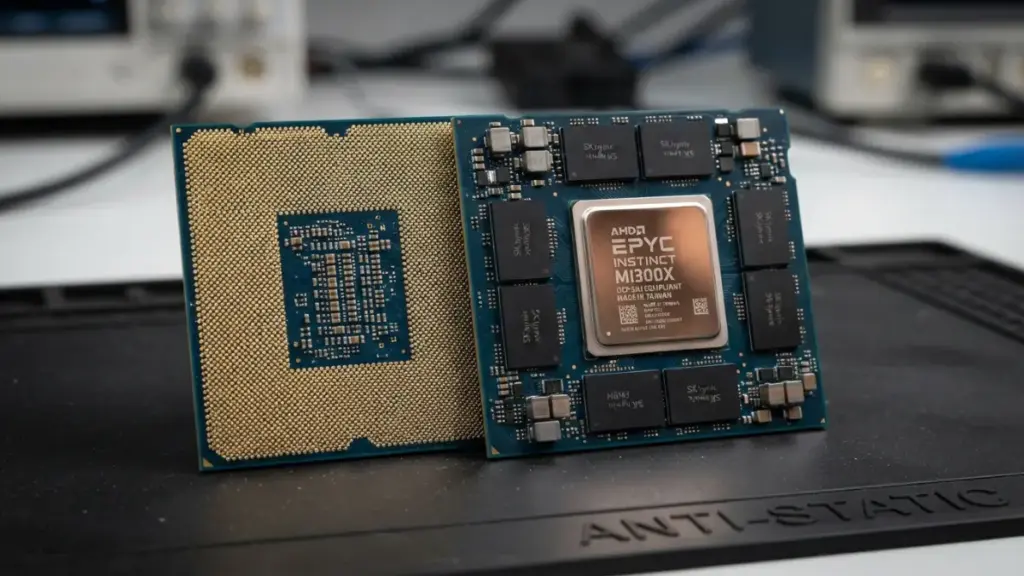

Wafer fabrication is only the first stage of modern chip creation; raw silicon wafers must undergo advanced packaging before becoming functional processor assemblies. Wafers produced at Fab 34 are seamlessly integrated into global packaging pipelines, utilizing advanced 3D stacking technologies such as Foveros to combine compute tiles, I/O tiles, and memory blocks into unified system-in-package solutions for modern intel chip manufacturing.
This multi-tile modular approach allows different components of a single processor to be built on different process nodes optimized for specific functions. For example, high-density logic tiles can be etched on the Intel 3 node in Ireland, while accompanying I/O elements are produced on mature nodes elsewhere, then combined at advanced packaging facilities in New Mexico or Penang. This modular strategy maximizes performance while optimizing overall costs in intel chip manufacturing.
Mitigating Operational Risks in Advanced Wafer Fabrication
Operating a modern 300mm wafer fab is one of the most complex engineering endeavors on Earth, requiring uninterrupted access to massive electrical power grids, ultra-pure water supplies, specialized industrial gases, and highly trained technical personnel. Mitigating operational risks across these domains is critical to ensuring continuous 24/7 intel chip manufacturing without costly line stops.
Energy Grid Reliability and Sustainability Standards in Europe
Semiconductor fabs require a continuous, flawless power supply; even a millisecond voltage drop can cause EUV scanners to fault, ruining tens of thousands of processed wafers in an instant. Ireland has invested heavily in reinforcing the electrical grid infrastructure surrounding the Leixlip industrial zone, installing dedicated redundant power sub-stations to guarantee stable electricity for intel chip manufacturing.
Furthermore, Fab 34 operates under strict European environmental sustainability mandates. The facility incorporates chemical recycling systems, heat recovery loops that warm adjacent municipal facilities, and advanced water reclamation systems that process and return over 80% of industrial water back to local river systems, setting new environmental benchmarks for green intel chip manufacturing.
Talent Ecosystem Maturity and Workforce Stability
A major hidden risk of greenfield developments like Magdeburg is the acute shortage of experienced semiconductor manufacturing engineers. A modern fab requires thousands of specialized technicians who understand ultra-high vacuum systems, chemical vapor deposition, plasma etching, and automated material handling robotics required for advanced intel chip manufacturing.
Irelandโs 30-year history as a European technology hub has fostered deep institutional partnerships with top academic institutions like Trinity College Dublin, University College Dublin, and Dublin City University. These universities supply a continuous stream of chemical engineers, material scientists, and automation specialists directly into the Leixlip talent pipeline, guaranteeing workforce stability that supports long-term intel chip manufacturing.
โA cleanroom building is merely an expensive concrete shell until populated by engineers who possess decades of collective memory in process defect elimination.โ
Luna
This human capital advantage allows process engineering teams in Ireland to rapidly tweak manufacturing parameters, troubleshoot yields, and integrate new chemical formulations without experiencing the steep learning curves typical of brand-new regional workforces in global intel chip manufacturing.
The Economics of Custom Foundry Services for Enterprise Clients
As the business model expands to offer commercial foundry services to external clients through Intel Foundry, building market credibility relies entirely on executing delivered commitments. Global technology firms looking to design custom ASIC chips for AI training or cloud computing require absolute guarantees that their intellectual property will be manufactured on time, on budget, and at scale through reliable intel chip manufacturing.
Strategic Realignment of Capital Allocation
By canceling or postponing expensive greenfield initiatives, corporate leadership frees up billions of dollars in liquid capital. This capital is reallocated directly toward upgrading tool sets, purchasing advanced High-NA EUV scanners for future nodes, and strengthening balance sheet liquidity during volatile cycles in intel chip manufacturing.
| Investment Destination | Action Status | Strategic Value Proposition |
| Magdeburg Greenfield Site | Paused / Postponed | Avoids $33B long-term civil construction and regulatory friction |
| ลรณdลบ Assembly & Test | Suspended | Prevents capital dilution across unbuilt regional packaging facilities |
| Ireland Fab 34 Expansion | Accelerated ($5.7B) | Direct capital deployment into immediate Intel 3 node volume production |
This financial discipline reassures enterprise customers and financial markets alike that manufacturing operations are governed by fiscal prudence rather than unchecked physical expansion. Focusing capital on sites with existing momentum accelerates time-to-revenue while lowering overall corporate operational risk in global intel chip manufacturing.
Long-Term Impact on Enterprise High-Performance Computing
The concentration of advanced node production at Fab 34 ensures that enterprise clients seeking custom silicon options have an immediate, proven partner in Western Europe. As data center architectures shift away from monolithic off-the-shelf CPUs toward tailored accelerators and heterogenous chiplet configurations, having access to an agile, EUV-equipped foundry becomes a major competitive advantage in intel chip manufacturing.
The Intel 3 node, running at full volume in Ireland, offers enterprise customers the precise transistor density, thermal efficiency, and clock frequency characteristics needed to power the next generation of cloud infrastructure. By doubling down on Fab 34, manufacturing operations secure their place at the center of global enterprise intel chip manufacturing.
Conclusion and Enterprise Strategic Outlook
The strategic consolidation of production resources into Irelandโs Fab 34 represents a mature, pragmatic victory for operational efficiency over speculative expansion in global intel chip manufacturing. By redirecting $5.7 billion into an existing, EUV-ready manufacturing powerhouse, semiconductor leadership bypasses the mounting delays, energy uncertainties, and astronomical civil build costs associated with greenfield projects like Magdeburg. This decision safeguards the rapid scaling of the Intel 3 process node, providing enterprise clients across North America and Europe with a secure, highly reliable supply of advanced high-performance computing silicon. As global technology demands continue to accelerate, the operational resilience, skilled talent base, and proven yield performance of the Leixlip facility firmly anchor the future of enterprise intel chip manufacturing.
